**聚酯網帶有導電膠水，可自黏，適用於技術室，窗框等。屏蔽效率75 dB。室內使用。**
特性

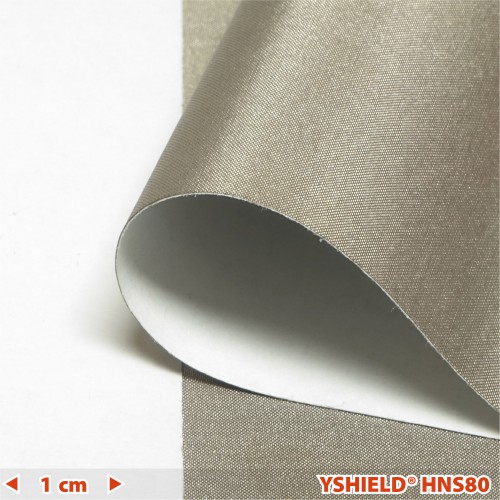

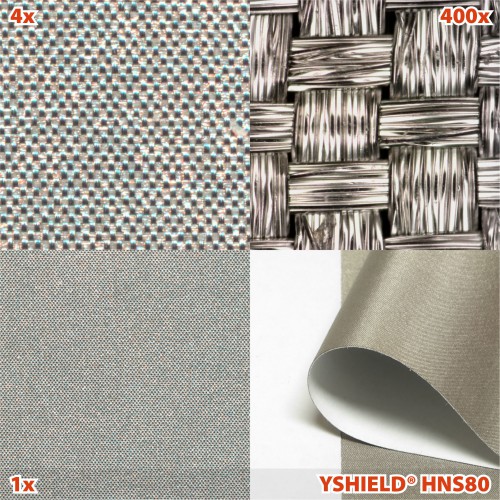

HNS80是一種緊密編織的金屬化聚酯網，用於大規模屏蔽高頻電磁波輻射 (HF)和低頻電場輻射 (LF)。帶有導電膠水，可自黏。以往多應用於商業用途例如數據中心、實驗室、TEMPEST rooms等，現在亦可供私人使用。
應用
主要用途是屏蔽門、窗框、盒子、箱子、設備、機器和許多其他技術應用。
For application on walls, ceilings and floors, the underground needs to be perfectly even. Wall paints, dry constructions boards, etc. need to be filled and sanded evenly. Afterwards you need to apply a layer of primer.
處理
It is best to process the netting with two people. One person holds the sheet on the right and left side in position, with some distance to the underground. The other person removes the protective film and presses the netting with a scraper (e.g. plastic scraper FVR10) strongly onto the underground. As soon as the netting is glued properly, press it once more strongly onto the underground so that the glue can deploy its best adhesion. We recommend practicing this at first for larger surfaces. Due to the electrical conductivity of the glue you can fix the sheets with an overlapping – if the edging is bothering you, you can level it out. When using wall paint on top of the netting, please take into consideration that the material contains copper, the pH value of the paint must not be higher than 8 – therefore mineral paints are not permitted to be used on top of it.
屏蔽效率 | 接地
- 本產品可屏蔽高頻電磁波輻射(HF)。指示的dB值適用於1 GHz，其他頻率請參見圖表。 根據標準ASTM D4935-10或IEEE Std 299-2006，專家報告的範圍從40/600 MHz到40 GHz，詳情請參考測試報告。
- 本產品具有可導電的表面，可屏蔽低頻交變電場(LF alternating electric fields)。必須接地。
技術數據
- 闊度：90cm
- 長度：整卷1米 (m)
- 屏蔽效率：75 dB
- 帶有導電膠水，可自黏
- 重量：110 g/m² (無保護貼)；220 g/m² (有保護貼)
- 材料厚度：0.095 mm (無保護貼)；0.22 mm (有保護貼)
- 顏色：灰/啡
- 拉伸強度：90 lbf
- 材料：聚酯纖維，銅，鎳，亞加力膠
- 表面導電率：0.02 ohm (square resistance)
* 我們可按客人要求，裁剪不同長度；請注意，所有貨品不設退換或退款，亦不可更換尺寸。
(所有產品資料以原廠/總代理為準。)
(中文版只供參考，如有差異一概以英文版為準。)
Latest Update: 31/5/2021
